Magnetoencephalography: Evidence of Magnetic Fields Produced by Alpha Rhythm Currents

DAVID COHEN department of Physics, university of Illinois at Chicago Circle, chicago 60680

Abstract. Weak alternating magnetic fields outside the human scalp, produced by alpha-rhythm currents, are demonstrated, Subject and magnetic detector were housed in a multilayer magnetically shielded chamber. Background magnetic noise was reduced by signal averaging. The fields near the scalp are about 1 X 10-9 gauss (peak to peak). A course distribution shows left-right symmetry for the particular averaging technique used here.

Fluctuating magnetic fields around the human torso, produced by ion currents from the heart, have been detected (1, 2) and studied (3). I now present evidence for the existence of a much smaller fluctuating magnetic field around the human head; the field is produced by the alpha-rhythm currents commonly seen on the electroencephalogram (EEG). The experiment, with some improvements, was similar to that for detecting the heart's magnetic field (2, 3); a subject with a sensitive magnetic detector near the field source, in this case the head, was situated in-side an enclosure which was heavily shielded from external magnetic fluctuations. The high sensitivity of this experiment is due to the use of a low-noise parametric amplifier as part of the detector, and to the effectiveness of the shielding.

In theory, magnetic measurements at or near the surface of a living volume can yield some information about the internal charge distribution not possible to obtain with surface voltage or potential measurements. The potential measurements are limited because in general they cannot uniquely determine an internal charge distribution (4) which, in a living volume, contains the polarized charge layers of excitable muscle and nerve tissue. In electrocardiography, measurements of surface potential yield information about the state of heart muscles; the anatomical and electrical situations are relatively simple and well-understood, and the accepted electrical model of the heart is adequate for many purposes. As techniques improve, the information extracted with electrocardiography of any particular heart may soon approach the maximum allowed by this limitation. Because of this, measurements of the heart's magnetic field can eventually serve the auxiliary purpose of reducing this limitation. In electroencephalography, measurements of the brain's magnetic field may have a greater and more direct use. The information extracted by scalp potential measurements (the EEG)is far less than the allowed maximum because of the anatomical, functional, and electrical complexity, of the source, for which no simple and effective model yet exists; the complexity is increased by the presence of the skull, a relatively poor conductor. Hence magnetic measurements around the bead may supply fundamental information needed simply to evolve an effective electrical model of the phenomena which give rise to the EEG.

In an attempt to detect fluctuating or ac magnetic fields from the brain, it makes sense to first use the alpha-rhythm currents. On instruction, the subject can produce or remove them by closing or opening his eyes; they yield some of the larger scalp potentials, and they are contained in the relatively narrow frequency band of 8 to 13 hz, with small harmonics; this is important because a narrower detector bandwidth means less detector noise, in which the weak magnetic signal is buried. By using a simplified geometry and formulas developed by Baule (5), one can theoretically predict the alpha-rhythm field several centimeters outside the scalp (6) to be -7 x 10-10 gauss peak to peak (pp), to within an order of magnitude. This is about 10-9 of the earth's steady field, 10-5 of the earth's fluctuations, and 10-3 of the heart's maximum field.

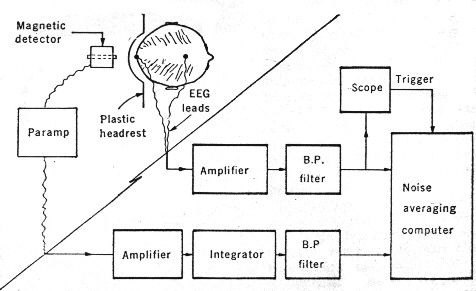

Fig. 1. Arrangement for magnetic alpha-rhythm detection. Subject and detector are inside the shielded enclosure, seen from the top; electronics are at an external station. The ferrite rod on the axis of the electrostatically shielded coil is in line with the subject's inion; this particular orientation detects the magnetic component normal to the scalp at the back of the head.

Figure 1 shows the arrangements for detecting this weak field. The enclosure, described in detail elsewhere (7), consists of three nested cubical shells 2 m on the inside; the outer two layers are of moly-permalloy, the inner of welded aluminum. The subject assumed different positions near the fixed detector for different measuring points around the head. The detector was a 1-million-turn (No. 44) coil in a thin-walled, brass electrostatic shield about 9 cm by 9 cm, with a removable ferrite rod core; this distorted the field but increased the flux fourfold. The detector operates because a weak alternating magnetic field induced a small voltage across the coil, this voltage was amplified in several stages, integrated to yield a voltage proportional to magnetic flux, and filtered to a 5-hz bandwidth at 10 hz. The sensitivity was limited by the thermal Johnson noise of the coil, which was greater than both the induced voltage from the magnetic background noise and the parametric amplifier (Texas Instruments RA3) input noise; in the stated bandpass this noise was equivalent to ~ 6 X l0-9 gauss (root-mean-square). The expected signal was then ~0.03 of the noise, and a computer of average transients (CAT) was used to extract the signal from the noise.

Fig. 2. (A and B) MEG noise only after 1000, 4000, and 9000 sweeps; (C) 4 x 10-9 gauss (pp) calibration, with generating current; (D) same but calibration loop flipped; (E~N) upper traces are MEG's, lowers are EEG's; (E) left side of G.B.'s head, normal component, eyes closed; (F) G.B., left side, normal component, eyes open; (G) G.C., left side, normal component, eyes closed; (H) G.C., left side, normal component, eyes open;

(I) G.C., right side, normal component, eyes closed; (J) G.C., ferrite removed, left side, normal component, eyes closed; (K) G.C., back of head, horizontal component, eyes closed; (L) F.S., back, normal component, eyes closed; (M) F.S., left side, normal component, eyes closed; (N) F.S., right front, normal component, eyes closed.

Fig. 3. General features of the measured B-vector distribution ar3und the head due to alpha-rhythm currents, inion averaging being used.

Each sweep of the CAT was triggered at a chosen phase of the EEG obtained from the pre-central region and inion, and filtered to almost match the magnetic band-pass; perfect matching was difficult because of coil resonance at 35 hz. The EEG signal was stored separately but simultaneously with the magnetoencephalogram (MEG). The system was therefore designed to search for an MEG produced only in coincidence with the EEG sampled from two particular scalp points.

Four subjects with alphas 'above average were chosen. Measurements on all four consistently showed the presence of an MEG signal, with a maximum of ~1 X 10-9 gauss (pp). To within the courseness of the experimental sampling, the MEG's varied similarly around the four scalps.

Figure 2 contains calibrations and results. The scale refers to all MEG's. (A) and (B) are MEG's from two different runs, a trigger from a 10-hz oscillator being used instead of the EEG: therefore the MEG's are only random thermal noise which decreases as the square root of the number of Sweeps. Since the expected fields are > 3 X 10-9 gauss (pp), I decided to use 2500 sweeps in most runs, including (E) to (N); these took about 8 minutes. (C) and (D) are MEG calibrations with a 10-hz alternating field from a nearby current loop, also showing the current wave current: the signal is well extracted out of the noise after 9000 sweeps. The loop was flipped over for (D) as a standard check; except for some noise, the phase reverses by 180o. (E) and (F) are typical MEG's obtained when the eyes are opened or closed, as are (G) and (H). When the eyes were closed, an MEG signal was coincident with the EEG, at about four times the noise level for 2500 sweeps; when the eyes were open both the MEG and EEG signals dropped appropriately. (I) shows the phase reversal at the other side of the head; this was seen on all subjects. Removal u3f the ferrite (J) drops the trace into the noise level, verifying the signal's magnetic origin; (K) and (L) show the B-vector orientation at the back of the head to be parallel to the scalp, since there is no significant normal component. (M) is similar to (E) on another subject; (N) shows the signal at the right temple.

Lengthy auxiliary experiments were performed to verify that the signal in, for example, Fig. 2E was due to alpha-rhythm currents and no other source. Each phenomenon which seemed capable of falsely producing the same results was repeatedly and systematically ruled out. Some of these are: the heart's magnetic field at the head, feedback from the external EEG amplifier to the magnetic detector, and magnetic noise which induces both a detector and an EEG voltage. Curious phenomena were indeed occasionally seen, but these were eventually understood and avoided. For example, poor contacts between EEG and the scalp resulted in 60-hz pickup in the EEG line which influenced triggers with eyes open, thereby selecting 60 hz magnetic sub-harmonics near 10 hz to stand out on the MEG. Figure 3 shows the course B-vector distribution at an arbitrary phase of the alpha cycle, averaged over 2500 cycles.

The distribution remains the same if the upper EEG lead is moved to another point, at about the same alpha-rhythm potential, say the right ear. No measurements have yet been made with the inion lead moved, but one would expect different distribution. Such measurements with resulting magnetic distributions would probably reveal1 information about the internal alpha-rhythm sources, and would be a first step in evaluating the possible uses of the MEG.
